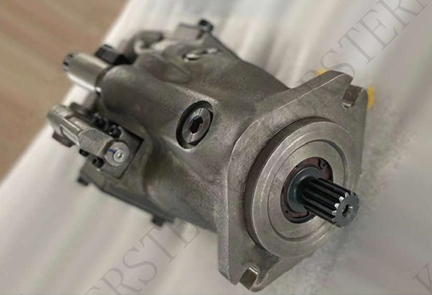

Radial Piston PumpA10VO85EP1D
A10VO85EP1D main pump
Technical requirement 一 Precautions forassembly
(1)During the assembly process,please be careful notto leave burrs on the assembly surface and not allow entering dust;
(2)Dust proof treatmentshould be applied to the exposed holes after assembly;
(3)Apply rust inhibitorto the input shaftand flange;
(4)When spraying paint,the nameplate and installation surface need to be covered to avoid painting.
Precautions for operation
(1)When transporting hydraulic pumps,do not impact strongly on the transmission shaft of the pump body;
(2)Before operation,it is necessary to exhaust through the exhaust port to fi l the casing with clean hydraulic oil;
(3)When operating the hydraulic pump,be careful
that the surface of the hydraulic pump assembly
(4)The cleanliness of the hydraulic oil should meet NAS level 9.
| Model number | A10VO85EP1D/53L-VUC12K68 |
| Output volume | 85ml/r |
| Rotationdirection | Levorotation |
| Rated speed | 2500rpm |
| Maximum speed | 3000rpm |
| Rated pressure | 250bar |
| Maximum pressure | 315bar |
| Cut off pressure | 280bar |
| Control mode | Output volume control of electrical ratio(DC)12V, Deutsch DT04-2P connection |
| Input shaft | 14T 12/24DPANSI B92.1a |
| Mounting flange | SAE J744-32-4 ;seam allowancediameter 127mm, seam allowance depth 12.7mm |
| Through shaft drive | Mounting flange:SAE J744101-2(B) ;Internal spline:13T 16/32DP |
| Housing oilreturn port | ISO 1192611/16-12UN-2B |
| Oil inlet | SAE 21/2",M12×1.75,thread depth21 |
| Oil outlet | SAE 11/4",M14×2,thread depth25 |
The A10VO85EP1 hydraulic motor is a high-performance, energy-efficient motor designed for use in various industrial applications. Its key properties include:
- High efficiency: The motor operates with minimal energy loss, resulting in lower operating costs and reduced environmental impact.
- Low noise: The motor's advanced design ensures quiet operation, making it suitable for use in noise-sensitive environments.
- Wide range of speeds: The motor can operate at a wide range of speeds, from low to high, making it adaptable to various applications.
- High torque capacity: The motor provides strong torque output, enabling it to handle heavy loads and demanding applications.
- Compact size: Despite its powerful performance, the motor is compact and lightweight, making it easy to integrate into existing systems.
- Long lifespan: The motor's durable construction and high-quality components ensure a long service life, reducing maintenance and replacement costs.
- Easy maintenance: The motor's simple design and accessible components make it easy to maintain and repair when necessary.
The A10VO85EP1 hydraulic motor is widely used in various industries, including construction, manufacturing, mining, and transportation. It is particularly suitable for applications requiring high torque, variable speed, and low noise operation.
